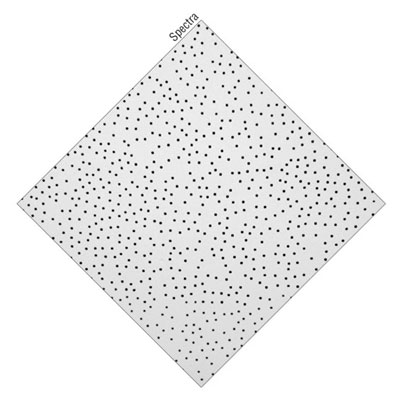

Spectra
A plain surface with pin holes resulting in a perfect combination of acoustical performance and light reflectance.
- Humidity resistance 100% RH
- Fire resistance Noncombustible - As per BS 476 Part IV Class 0/ Class 1 - As per BS 476 part VI & VII
- Thermal Conductivity K value <= 0.05 W/m°k
- Sound Absorption NRC 0.50
- Sound Attenuation 32dB
- Light Reflectance > 85%
- Weight 5.0 kgs/m 2
Specifications
| Board | T-24 | T-15 | Silhouette | |
|---|---|---|---|---|
| Grid System |  |
 |
 |
 |
| Edge details |  |
 |
 |
 |
| Module size | 600X600 mm | 600X600 mm | 600X600 mm | 600X600 mm |
| Item No. | 5131 | 5132 | 5133 | 5133 |
Fine Fissured AI
A smooth surface with microperforations interspread with non directional fine fissures for effective sound absorption making it ideal for offices software centers and commercial space.
- Humidity resistance 100% RH
- Fire resistance Noncombustible - As per BS 476 Part IV Class 0/ Class 1 - As per BS 476 part VI & VII
- Thermal Conductivity K value <= 0.05 W/m ° k
- Sound Absorption NRC 0.50
- Sound Attenuation 32dB
- Light Reflectance > 85%
- Weight 5.0 kgs/m2
Specifications
| Board | T-24 | T-15 | Silhouette | |
|---|---|---|---|---|
| Grid System | |
|
|
|
| Edge details | |
|
|
|
| Module size | 600X600 mm | 600X600 mm | 600X600 mm | 600X600 mm |
| Item No. | 4131 | 4132 | 4133 | 4133 |
Spintone
A crisp finely granulated surface with microperforations to provide a distinctive elegance to your interiors.
- Humidity resistance 100% RH
- Fire resistance Noncombustible - As per BS 476 Part IV Class 0/ Class 1 - As per BS 476 part VI & VII
- Thermal Conductivity K value <= 0.05 W/m°k
- Sound Absorption NRC 0.50
- Sound Attenuation 32dB
- Light Reflectance > 85%
- Weight 5.5 kgs/m2
Specifications
| Board | T-24 | T-15 | Silhouette | |
|---|---|---|---|---|
| Grid System | |
|
|
|
| Edge details | |
|
|
|
| Module size | 600X600 mm | 600X600 mm | 600X600 mm | 600X600 mm |
| Item No. | 6131 | 6132 | 6133 | 6133 |
Cosmos
A lightly textured surface with microperforations. The non directional pattern ensures a smooth monolithic appearance ideally suited for today's contemporary interiors.
- Humidity resistance 100% RH
- Fire resistance Noncombustible - As per BS 476 Part IV Class 0/ Class 1 - As per BS 476 part VI & VII
- Thermal Conductivity K value <= 0.05 W/m°k
- Sound Absorption NRC 0.50
- Sound Attenuation 32dB
- Light Reflectance > 85%
- Weight 5.5 kgs/m2
Specifications
| Board | T-24 | T-15 | Silhouette | |
|---|---|---|---|---|
| Grid System | |
|
|
|
| Edge details | |
|
|
|
| Module size | 600X600 mm | 600X600 mm | 600X600 mm | 600X600 mm |
| Item No. | 7131 | 7132 | 7133 | 7133 |

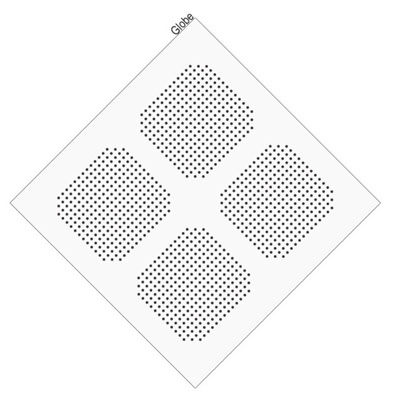

Globe
Lightly textured with micro perforations.
A smooth surface with round through holes backing of special acoustic mat for high sound absorption
- Humidity resistance 100% RH
- Fire resistance Noncombustible - As per BS 476 Part IV Class 0/ Class 1 - As per BS 476 part VI & VII
- Thermal Conductivity K value <= 0.05 W/m°k
- Sound Absorption NRC 0.75
- Sound Attenuation 32dB
- Light Reflectance > 85%
- Weight 5.5 kgs/m2

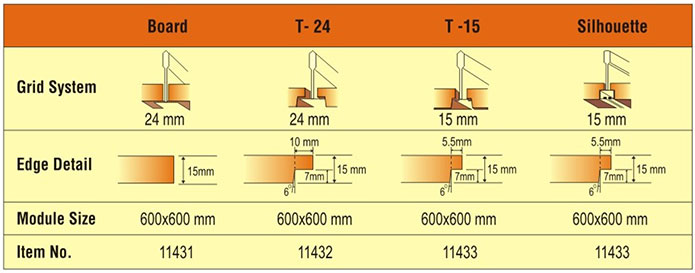

Specifications
